Microwave Component Design & Manufacturing

Components and Solutions
for RF & Microwave Signal Chains

Your trusted partner for the full cycle of microwave component development — from prototype to volume production —
powering the next generation of radio-electronic systems.

Product Catalog Request
Telecommunications Radar Systems Satellite Communications Defense Systems Test & Measurement Equipment
YIG Bandpass Filter ERIFP-840W-S1

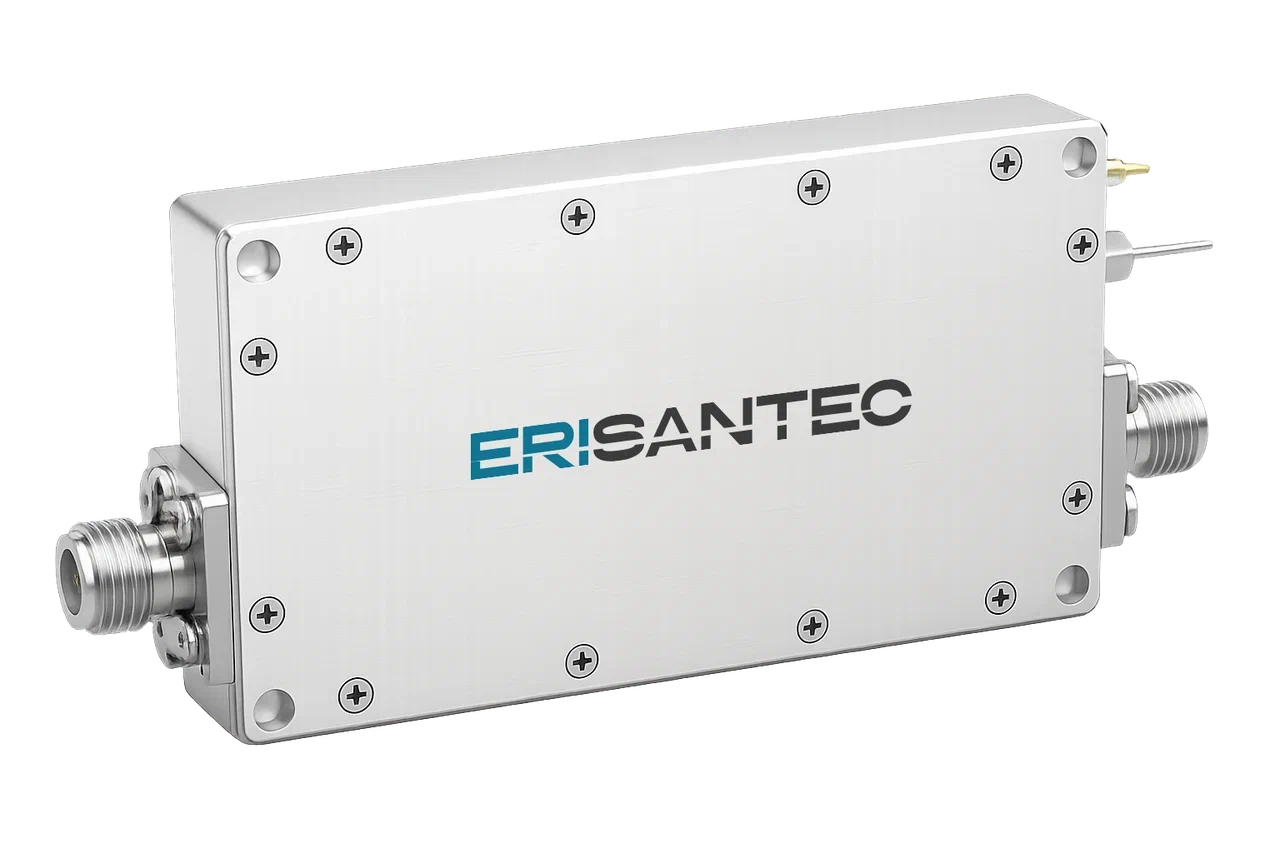

Low Noise Amplifier ERI-LNA-0.01-12-G38-5V-13SH

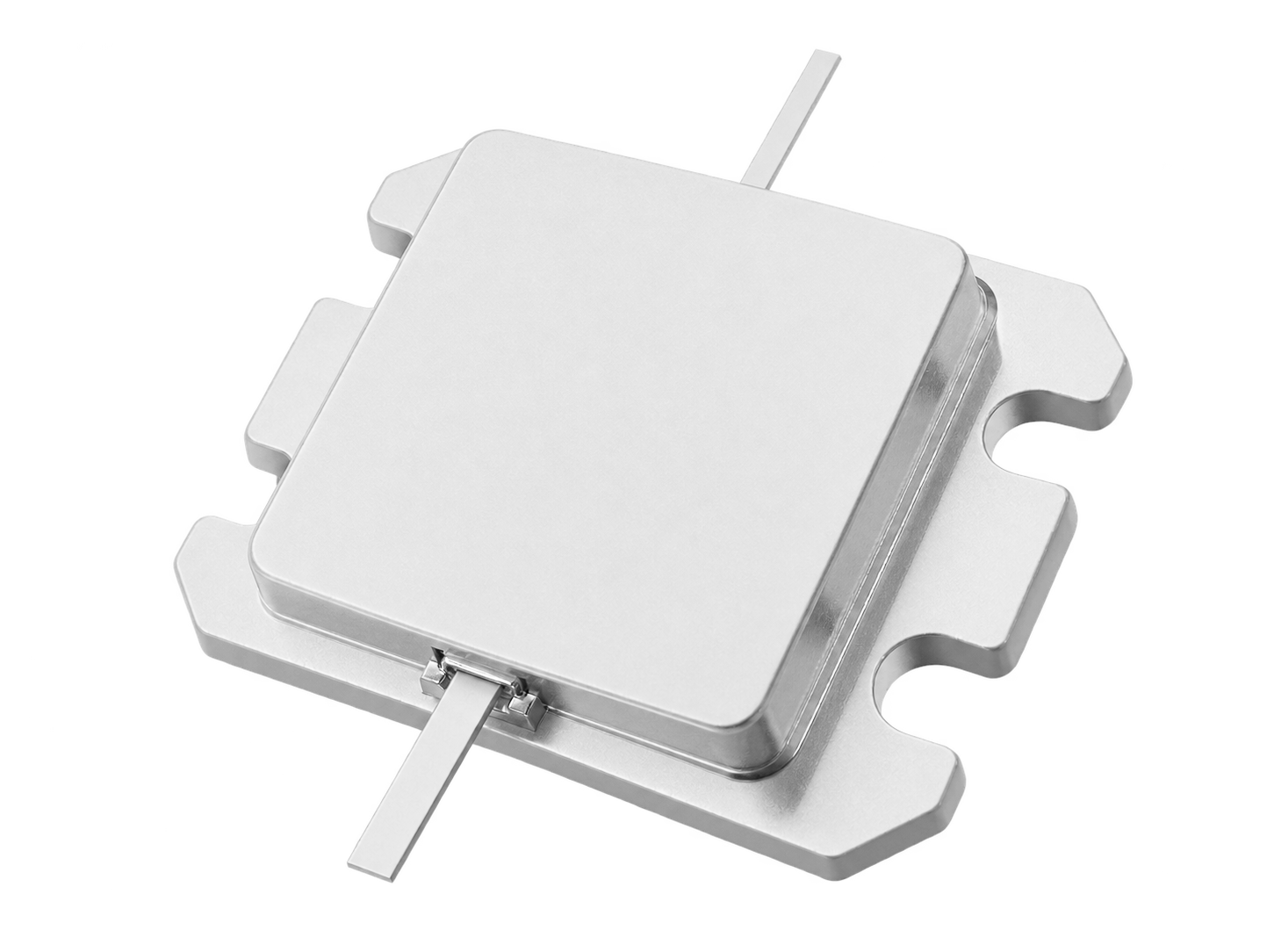

Field-Effect Transistor ERI2735-P58

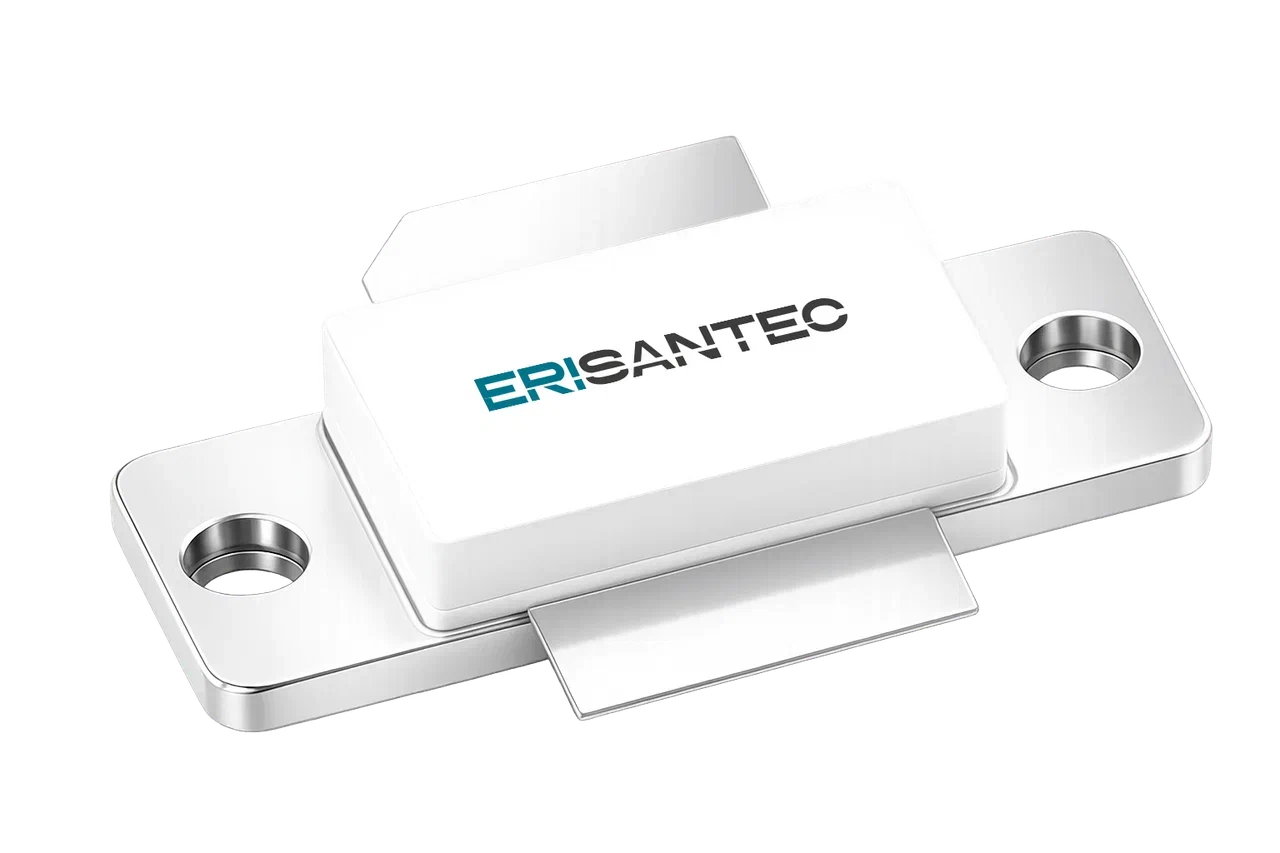

RF power transistor ERI-SMAJL27-1W-GM
2-Way Power Divider ERI-PS2-DC/26.5-SZ
RF coaxial adapter /
connector ERI-N-SMA-KFKSD
Show more
Application Areas

Solutions for Mission-Critical Systems

ERISANTEC components are deployed in high-demand industries, where reliability and precision of technical parameters are non-negotiable.

Telecommunications

Base stations, transport networks, satellite and terrestrial communication systems.

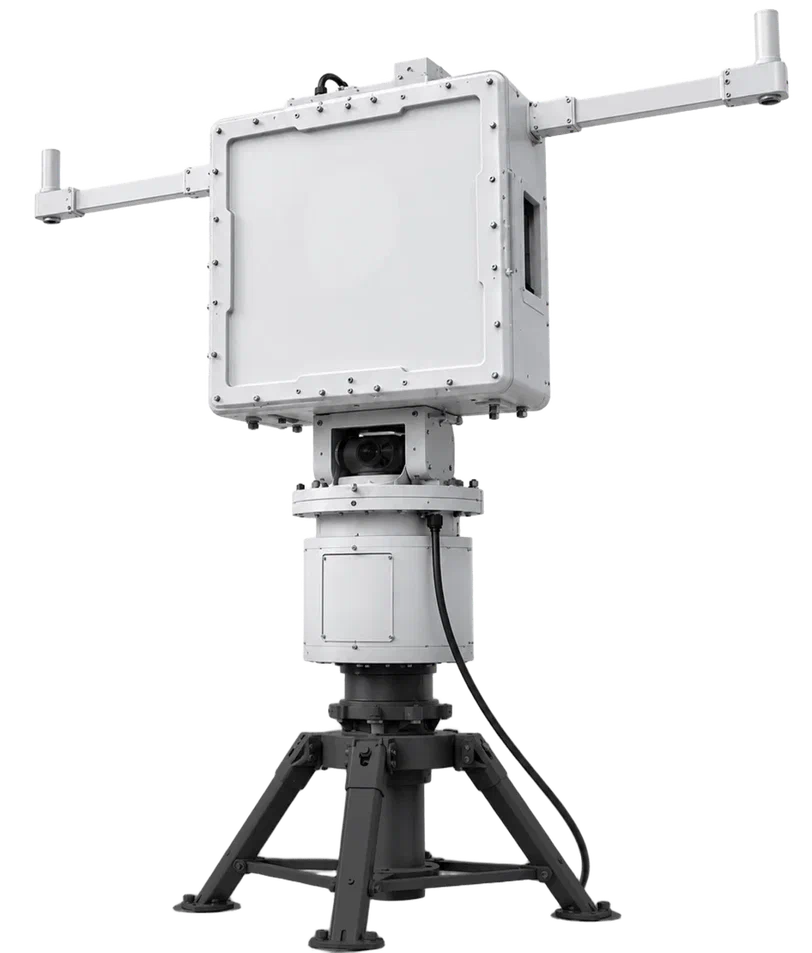

Radar Systems

Surveillance, navigation and air traffic control radar systems.

Satellite Communications

Ground stations, satellite payloads, VSAT and SATCOM systems.

Test & Measurement Equipment

RF test benches, network analyzers, signal generators.

Industrial Electronics

Non-destructive testing systems, industrial level and motion radars.

Defense Systems

Electronic warfare systems, special-purpose communications, military radars and sensors.

Products

Complete Component Catalog

Eight categories of microwave products — from active amplifiers to waveguide loads and antennas.

Active Microwave Devices — amplifiers, mixers, oscillators and switches for constructing transmit/receive signal chains in the 0.1–50 GHz range.
Device Type Frequency Range, GHz Key Specifications
Low-Noise Amplifiers (LNA) 0.1 – 40 NF 0.3–2.5 dB · Gain 10–45 dB · P1dB +10…+25 dBm
Solid-State Power Amplifiers (SSPA) 0.1 – 40 Output +20–50 dBm · Efficiency 30–70% · Gain 20–60 dB
Mixers 0.5 – 50 Conversion Loss 6–10 dB · IP3 up to +30 dBm
Oscillators / VCO 0.1 – 20 Phase Noise −90…−140 dBc/Hz · Output Power 0…+15 dBm
RF Switches DC – 50 Insertion Loss 0.5–2.5 dB · Isolation 40–80 dB · Switching Time 10–100 ns
Passive RF Components — power dividers, couplers, isolators and attenuators for power management and signal routing.
Component Type Frequency Range, GHz Key Specifications
Power Dividers / Combiners 0.5 – 40 2–16 ports · Amplitude Imbalance ±0.3–1.5 dB · Isolation 15–30 dB

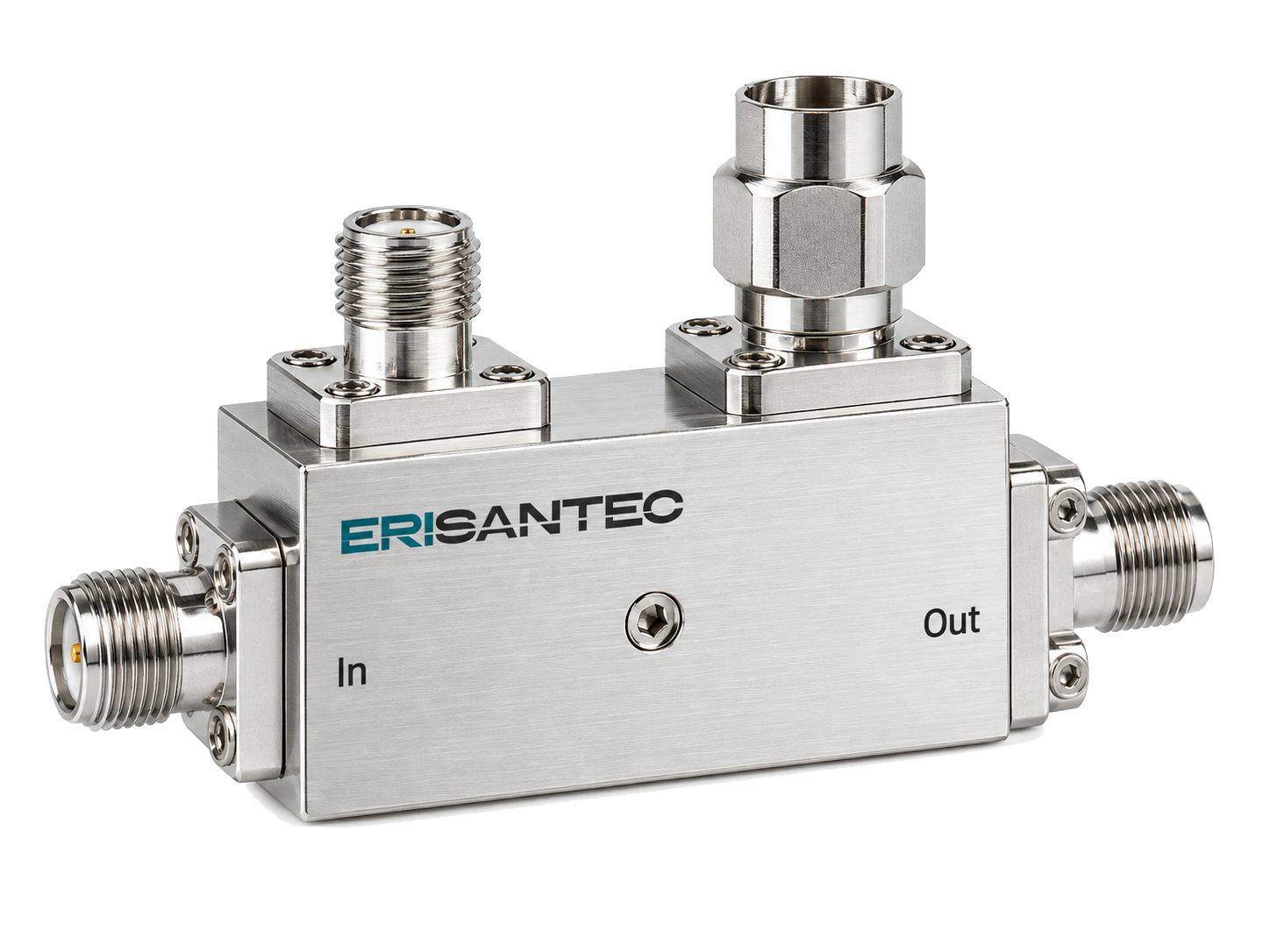

Directional Couplers 0.5 – 50 Coupling 3–30 dB · Directivity 20–40 dB · Insertion Loss 0.2–1 dB

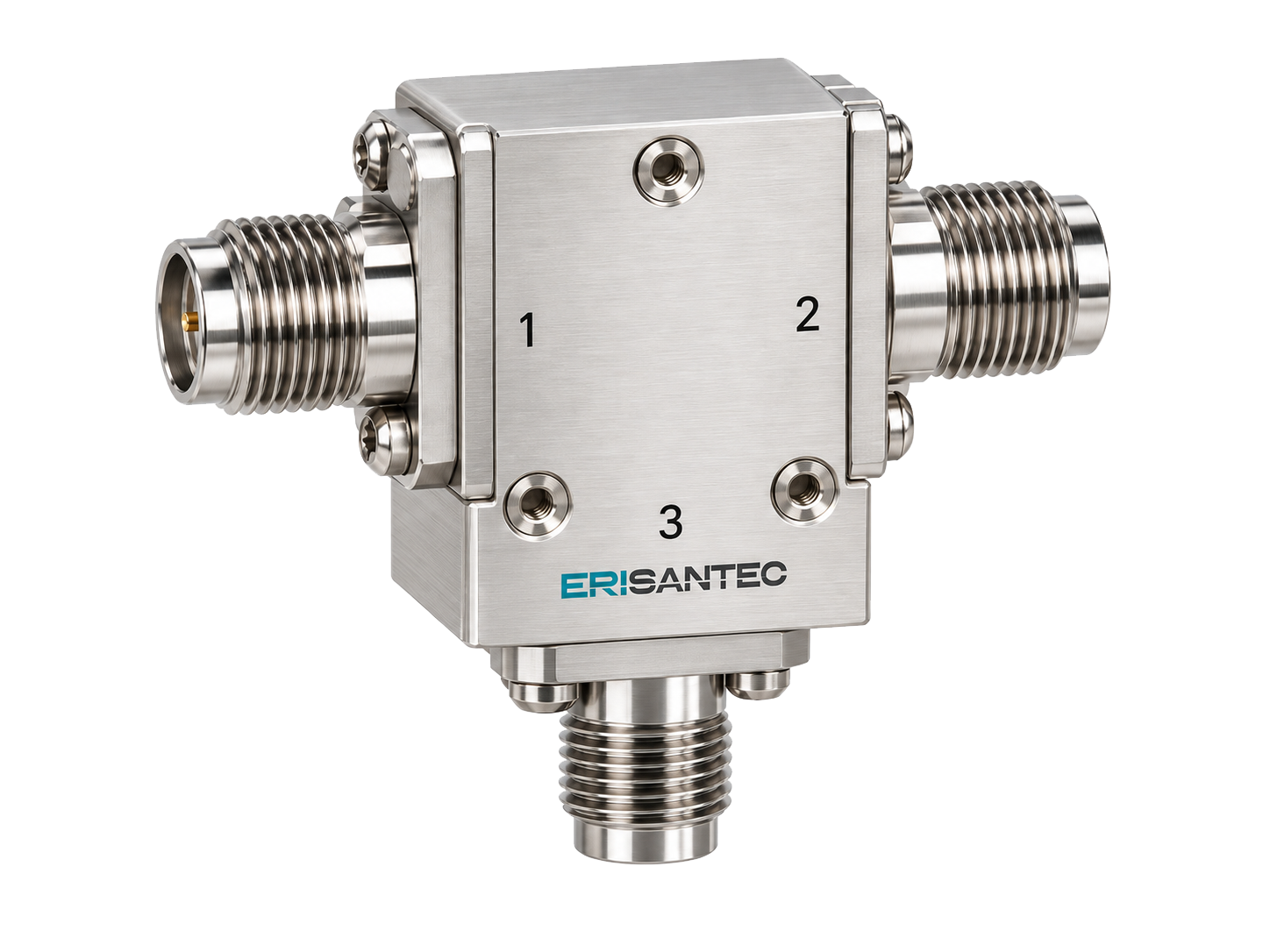

Isolators / Circulators 0.5 – 40 Isolation 18–30 dB · Insertion Loss 0.2–0.6 dB · Power 10–500 W
Attenuators DC – 50 Attenuation 1–60 dB · Power 0.5–100 W · VSWR <1.35
Microwave Semiconductor ICs — monolithic microwave integrated circuits (MMIC) and discrete transistors on GaN GaAs SiGe process technologies.
Type Frequency Range, GHz Specifications Technology
Microwave Power Transistors 0.1 – 40 NF 0.3–2.5 dB · Gain 10–45 dB · P1dB +10…+25 dBm GaN LDMOS
Low-Noise Transistors (LNA devices) 0.5 – 40 Noise Figure 0.3–1.5 dB · Gain 10–20 dB · P1dB +5…+20 dBm GaAs pHEMT

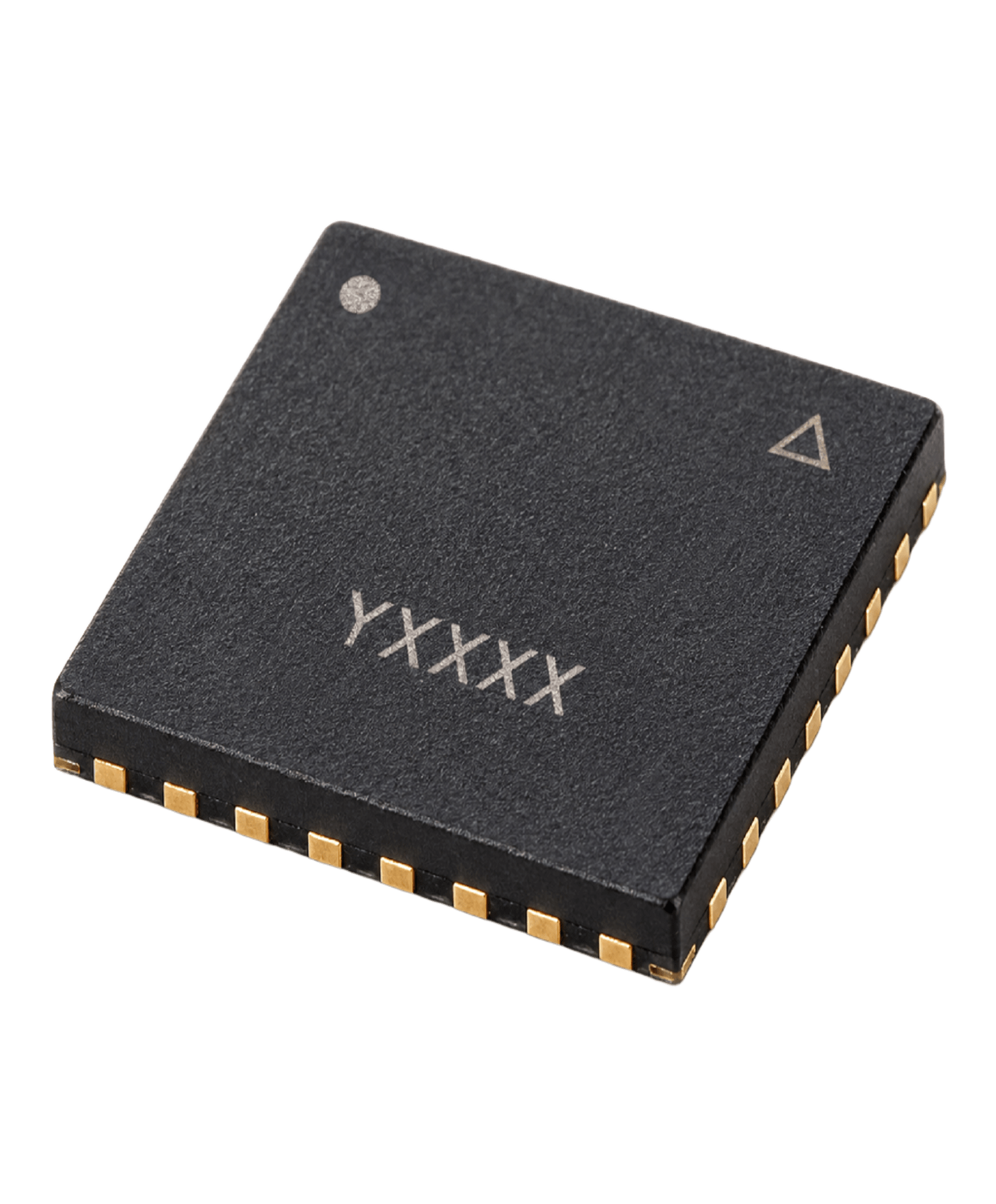

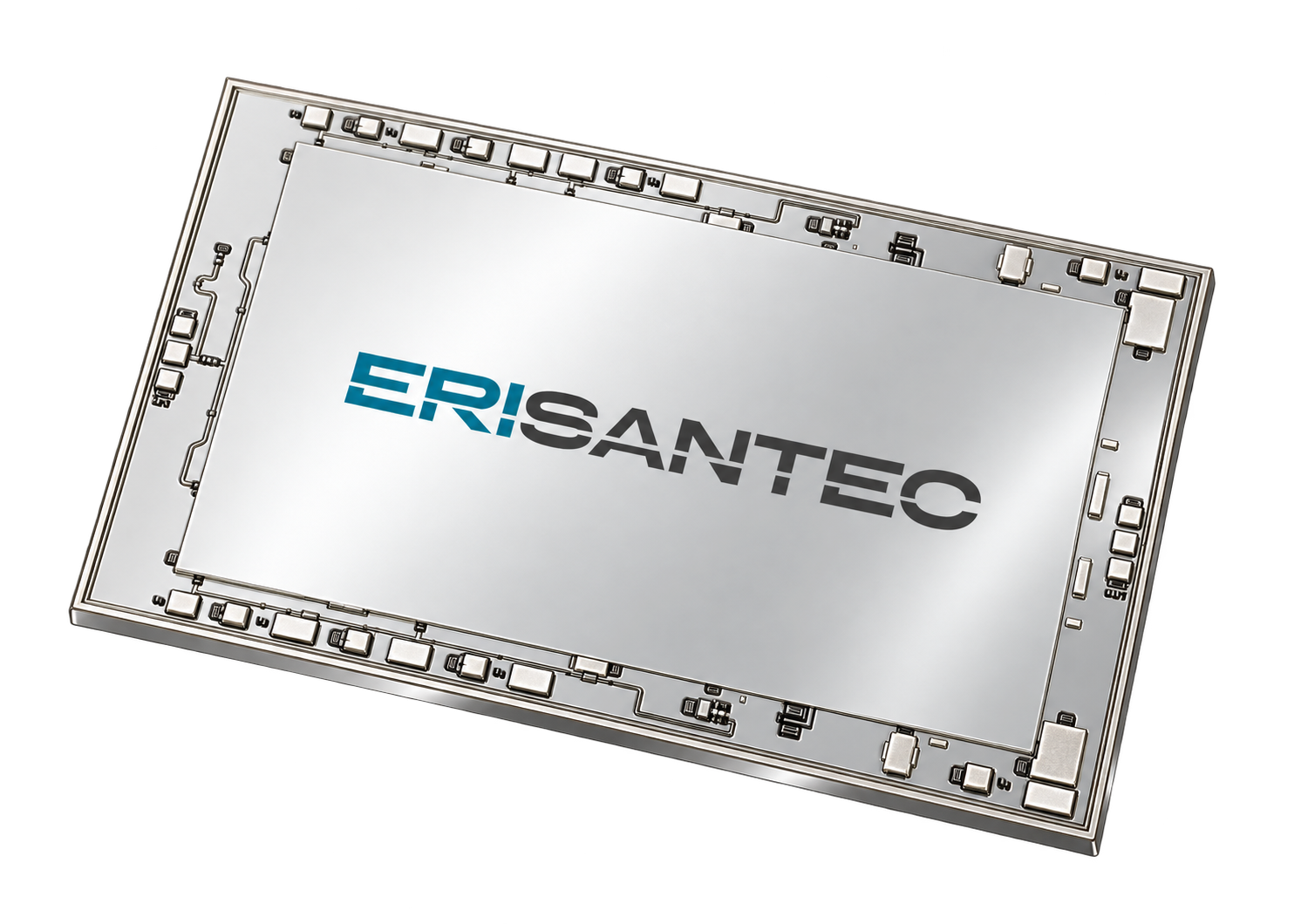

MMIC Microwave ICs DC – 110 LNA, PA, drivers, mixers, multipliers · Gain 8–25 dB · P1dB +5…+30 dBm GaAs GaN SiGe
Microwave Diodes DC – 50 PIN (switches, attenuators) · Schottky (detectors, mixers) · Varactors (multipliers) · Switching time 1–100 ns GaAs Si
RF/Microwave Connectors, Adapters and Cable Assemblies — coaxial connectors up to 67 GHz and phase-stable cables with temperature stability.
Type Frequency Range, GHz Key Specifications
Coaxial Connectors DC – 67 VSWR 1.1–1.35 · Durability 500–1,000 mating cycles
Coaxial Adapters DC – 50 Insertion Loss <0.1–0.3 dB
Cable Assemblies DC – 67 Flexible / Semi-rigid / Phase-stable configurations
Phase-Stable Cables DC – 40 Phase Stability ±0.5–2° · Temperature-stable performance
Waveguide Components — extensive range of waveguide products from 1 to 110 GHz, including loads rated up to 5 kW.
Type Frequency Range, GHz Key Specifications
Waveguide Transitions 1 – 110 Insertion Loss 0.1–0.5 dB · VSWR 1.05–1.25
Waveguide Couplers 2 – 110 Coupling 10–30 dB · Directivity 30–40 dB
Bends and Twists 2 – 110 Insertion Loss <0.2–0.3 dB
Waveguide Loads 1 – 110 VSWR <1.05 · Power Rating 10 W – 5 kW
RF and Microwave Filters — bandpass, low-pass/high-pass and notch filters with rejection up to 80 dB over the DC–40 GHz range.
Filter Type Frequency Range, GHz Key Specifications
Bandpass Filters 0.1 – 40 Insertion Loss 0.5–3 dB · Rejection 40–70 dB
Low-Pass / High-Pass Filters DC – 40 Harmonic Rejection 40–70 dB · Insertion Loss 0.3–2 dB
Notch Filters 0.1 – 20 Rejection 40–80 dB · Stopband Width 1–10%
Antennas — horn, parabolic, monopole and patch antennas for frequency ranges from 30 MHz to 110 GHz.
Antenna Type Frequency Range, GHz Key Specifications
Horn Antennas 1 – 110 Gain 10–25 dBi · VSWR <1.5
Parabolic Dish Antennas 1 – 40 Gain 20–45 dBi
Monopole Antennas 0.03 – 6 Gain 2–8 dBi · Omnidirectional radiation pattern
Patch Antennas 1 – 10 Gain 5–12 dBi · Low-profile design
About Us

Full Cycle:
From Design to Volume Production

ERISANTEC specializes in the design and manufacture of microwave components for professional applications. The full in-house cycle — from engineering and prototyping through to volume production — guarantees parameter stability throughout the entire product life cycle.

Discuss a Project
01
Wide Frequency Coverage

Components cover the DC to 110 GHz range within a single-vendor portfolio.

02
GaN / GaAs Technologies

Advanced semiconductor processes for maximum efficiency and linearity.

03
Volume Production

Ordering options from engineering samples to full production runs with guaranteed specifications.

04
System Upgrades

Drop-in replacement development and upgrade of existing microwave signal chains in fielded systems.
