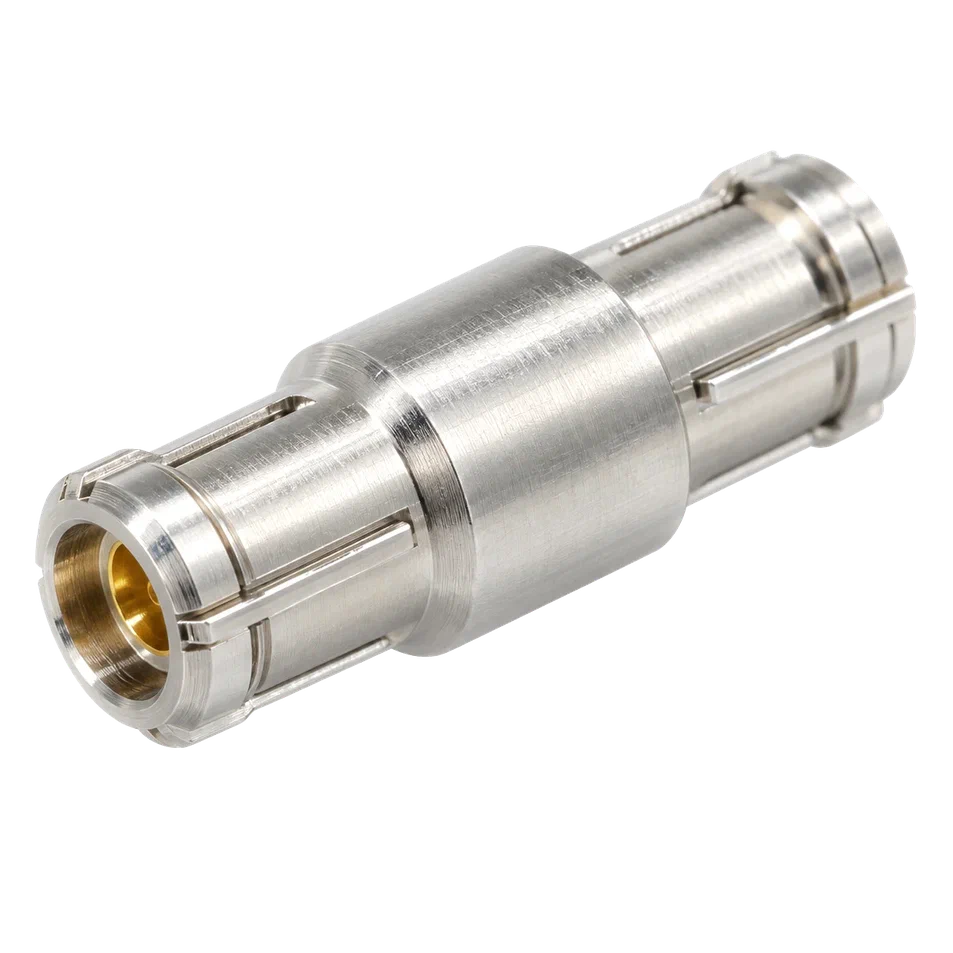

SSMP Female to SSMP Female Adaptor

This is a precision RF connector (drawing no. 0T8L4) rated for 10 MHz to 40 GHz operation with 50 Ω nominal impedance, VSWR ≤ 1.35, and insertion loss ≤ 0.1×√f_GHz dB, featuring a dielectric withstanding voltage of 500 V and an operating temperature range of −45 °C to +125 °C. The inner conductor is made of gold-plated beryllium copper, the dielectric is PTFE, and the body material and finish follow the referenced material/finish tables; all dimensions are in millimeters with standard tolerances of ±0.25/±0.15/±0.12 mm for 0/1/2 decimal places respectively and angles ±1°.
