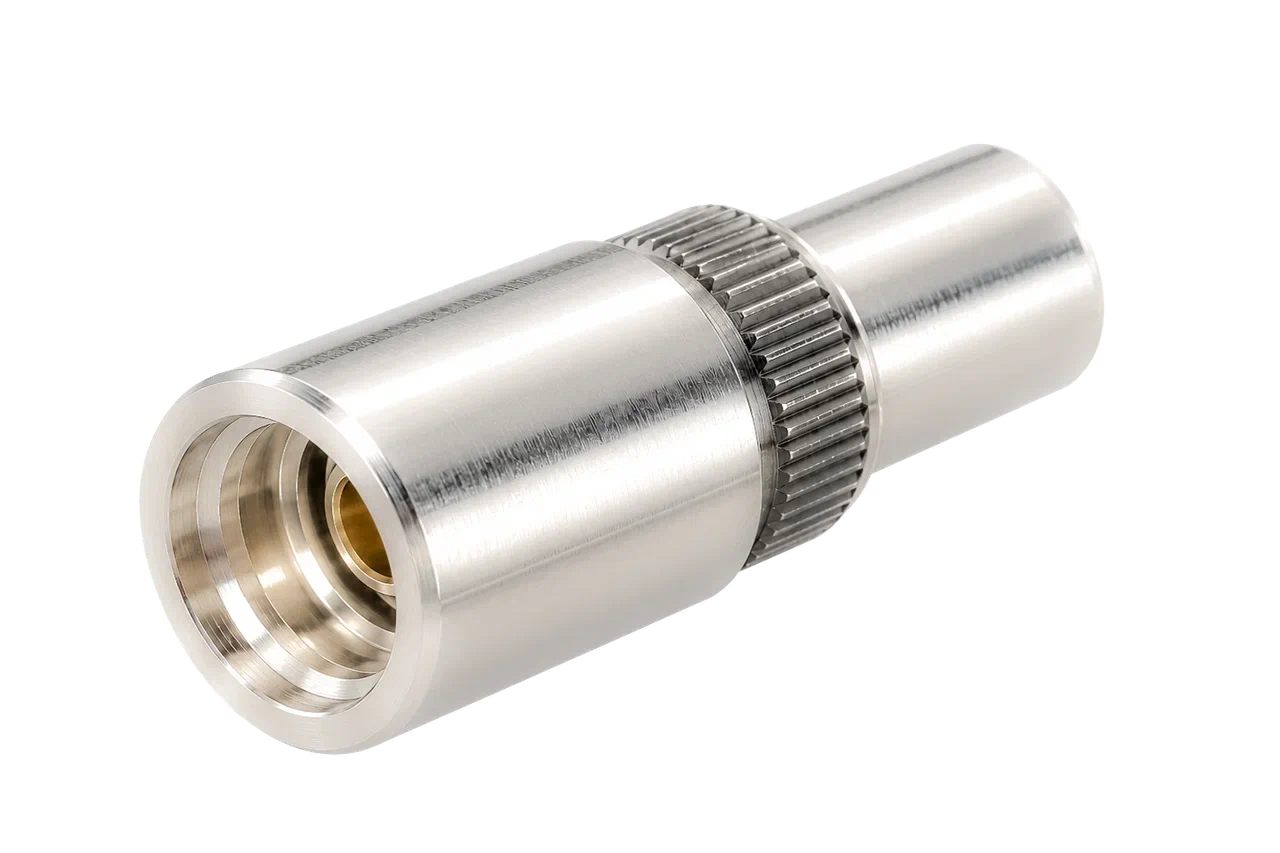

SSMP Male SSMP Male Connector

The SSMP-JJ is a precision SSMP male-to-male connector designed for DC to 65 GHz applications, featuring a 50 Ω impedance, VSWR ≤ 1.35, and insertion loss of 0.05×√f_GHz dB, with an insulation resistance of 5000 MΩ and dielectric withstanding voltage of 350 V. It operates reliably from −45 °C to +125 °C and is constructed with a beryllium copper inner conductor (ASTM B196, UNS C17300), PEI dielectric, and a stainless steel body (AMS5640, UNS S30300), with all dimensions specified in millimeters and tight mechanical tolerances (angles ±1°, linear tolerances from ±0.12 to ±0.25 mm depending on decimal place).
