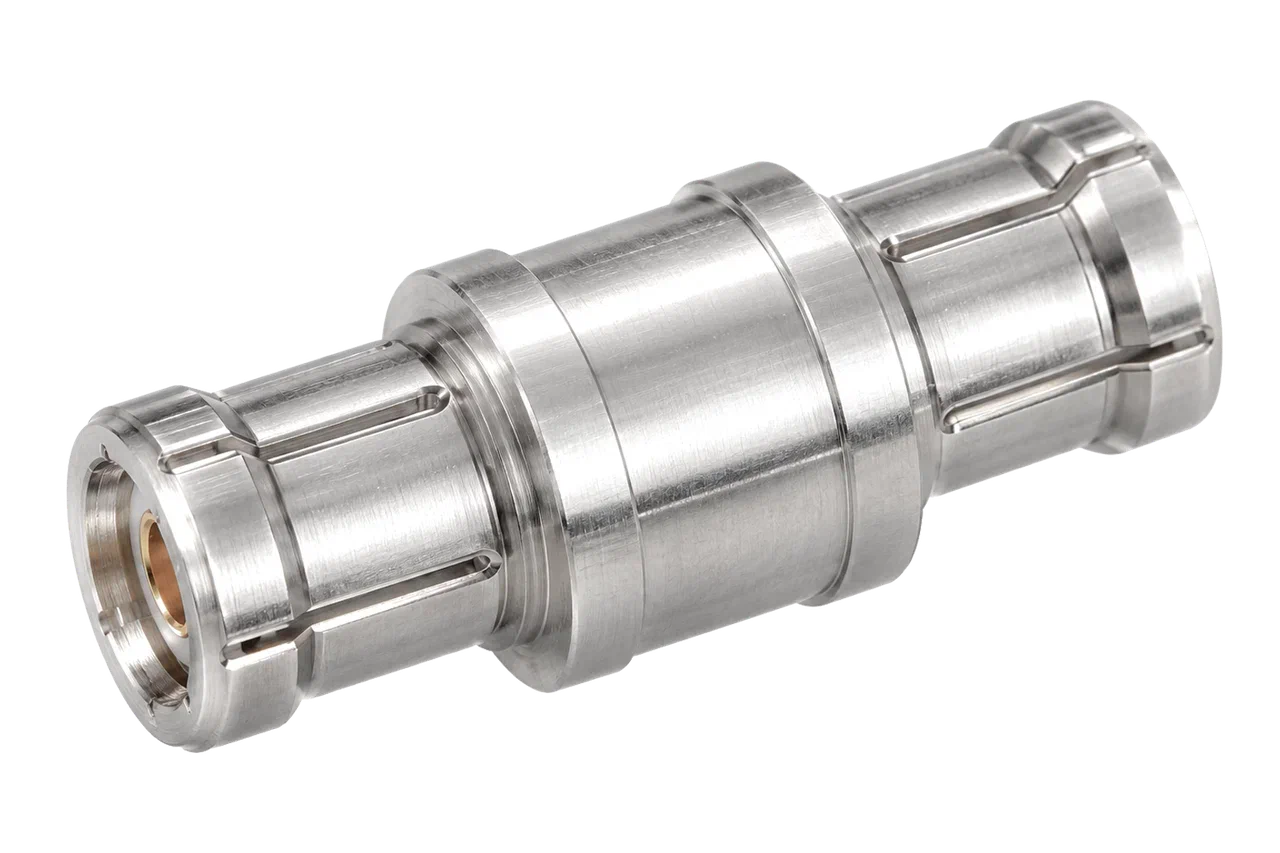

SSMP Female to SSMP Female Adaptor
SSMP-KKC
The SSMP-KKC is a precision SSMP female-to-female adapter designed for DC to 26.5 GHz applications, featuring a 50 Ω impedance, VSWR ≤ 1.25, insertion loss of 0.05×√f_GHz dB, insulation resistance of 5000 MΩ, and dielectric withstanding voltage of 500 V. It operates reliably from −45 °C to +125 °C, with all mechanical dimensions specified in millimeters and standard tolerances of ±0.25/±0.15/±0.12 mm for 0/1/2 decimal places respectively and angles ±1°.
